HTS ECO-Jack G-Series Hydraulic Toe Jack 5 Ton - 10 Ton

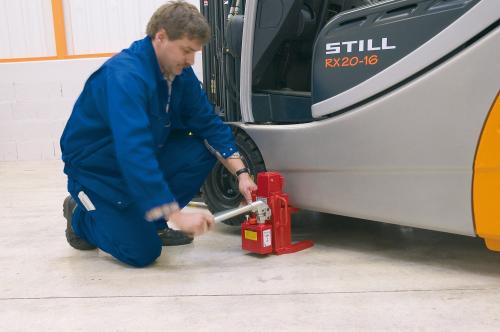

The compact G-Series hydraulic Jack has an intregrated pump which eliminates the need for additional hoses or pumps. It is supplied with a low profile lifting toe which is perfect on all types of forklift truck, electric hand trucks and stackers with low clearance.
Supplied with a Patented lift claw which ensures safe lifing of heavy loads. The claw can be switched to a different position using one hand wth no tilting movements needed.
A high quality design using top grade material, has reduced the weight of the G-Series by 20% compared to other jacks. Because they have precision milled guides they can guarantee a precise lowering and lifting movement ensuring a long product life.
There is an external hose coupling for a load capacity of 10 Ton and above, the male coupler which is drip free enables the unit to be connected to an external pump.
| Type | EJ50-3G | EJ100-3G |
|---|---|---|
| Part number | 01.051.30.10 | 01.101.30.10 |
| Capacity (lbs.) | 11,000 | 22,000 |
| Working pressure (bar/psi) | 520/7,425 | 520/7,425 |
| Claw height (inch) | 1.0 | 1.2 |
| Adjustability (inch) | 3 x 3.2" | 3 x 3.0" |
| Stroke (inch) | 5.5" | 5.5" |
| Dimensions L x W x H (inch) | 11.1" X 9.3" X 10.3" | 13.6" X 9.8" X 10.4" |
| Weight (lbs.) | 48 | 66 |
