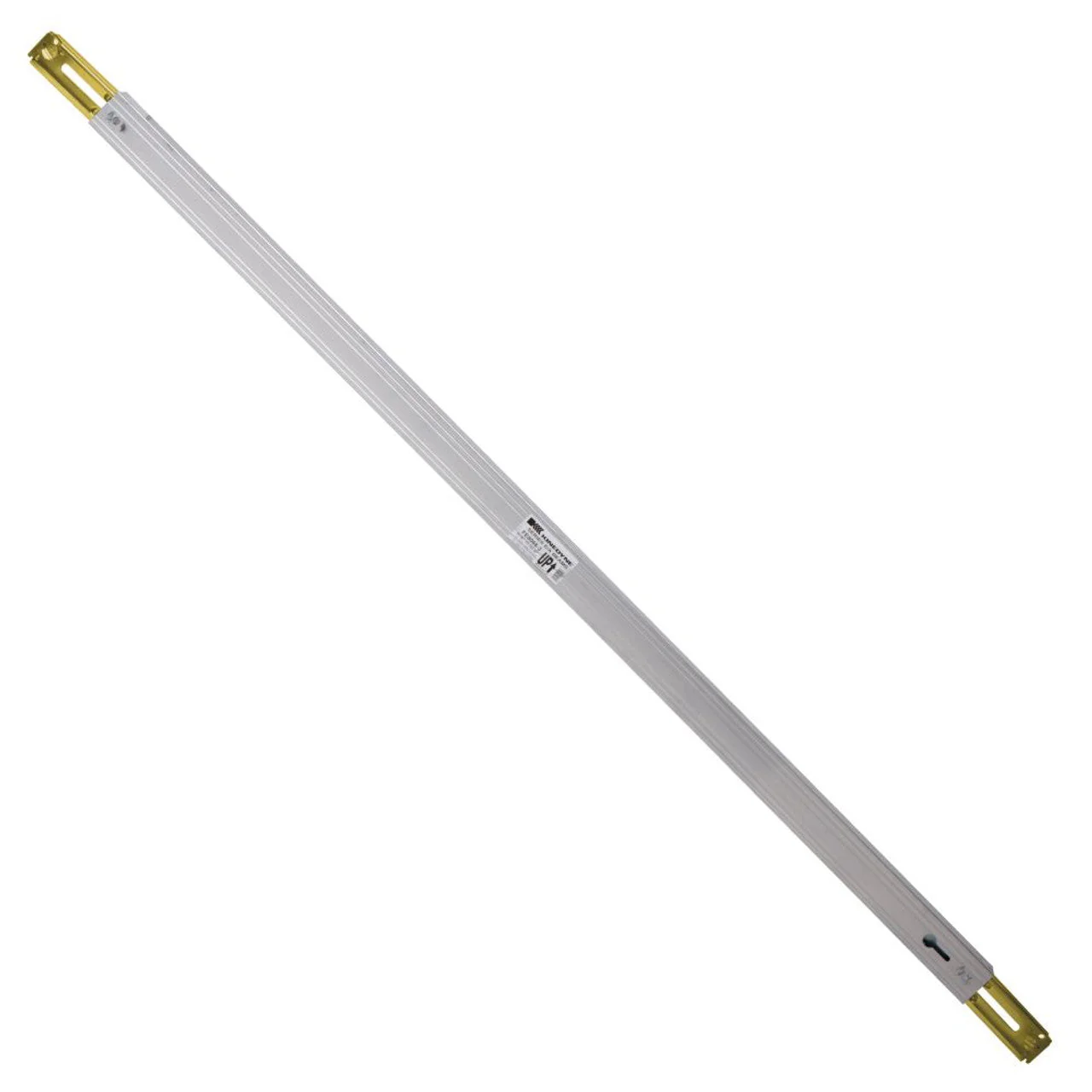

Kinedyne 96" - 106" Series E or A Aluminum Decking/Shoring Beam
Misshapen or uneven loads can cause havoc when planning, but thanks for Kinedyne's Series E/A Aluminum Decking/Shoring Beam, you can now optimize space as well as securely locking cargo in its rightful place.
As with all Kinedyne cargo solutions, the Series E/A Decking Beam is designed with strength at its core, engineered from extruded aluminum. Acting as a barrier between cargo, this unit can handle a wide variety of load types.
Adjustable from 96.2 inches to 106.6 inches, the hardened steel, zinc-plated head assembly simply locks into the E/A Series track. Additionally, this shoring beam is equipped with Kinedyne's innovative KwikLatch Release Tab, improving efficiency and reducing damage compared to traditional top-mounted versions.
96" - 106" Series E or A Aluminum Decking/Shoring Beam ā FE8066-3XL Quick Specs:
- For Trailer Size (Wide):Ā 102 Inch Wide Trailers
- Decking Working Load Limit:Ā 2,200 Lbs. / 1,000 Kgs.
- Shoring Working Load Limit:Ā 2,000 Lbs. / 910 Kgs.
- Series Type:Ā Series E or A
- Width:Ā 2.57 Inches
- Height:Ā 3.22 Inches
- Minimum Length:Ā 96.2 Inches
- Maximum Length:Ā 106.6 Inches
- Beam Head Assembly Type:Ā Kinedyne 80007 KwikLatch Release Head Assembly
Original: $118.66
-65%$118.66
$41.53Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Misshapen or uneven loads can cause havoc when planning, but thanks for Kinedyne's Series E/A Aluminum Decking/Shoring Beam, you can now optimize space as well as securely locking cargo in its rightful place.
As with all Kinedyne cargo solutions, the Series E/A Decking Beam is designed with strength at its core, engineered from extruded aluminum. Acting as a barrier between cargo, this unit can handle a wide variety of load types.
Adjustable from 96.2 inches to 106.6 inches, the hardened steel, zinc-plated head assembly simply locks into the E/A Series track. Additionally, this shoring beam is equipped with Kinedyne's innovative KwikLatch Release Tab, improving efficiency and reducing damage compared to traditional top-mounted versions.
96" - 106" Series E or A Aluminum Decking/Shoring Beam ā FE8066-3XL Quick Specs:
- For Trailer Size (Wide):Ā 102 Inch Wide Trailers
- Decking Working Load Limit:Ā 2,200 Lbs. / 1,000 Kgs.
- Shoring Working Load Limit:Ā 2,000 Lbs. / 910 Kgs.
- Series Type:Ā Series E or A
- Width:Ā 2.57 Inches
- Height:Ā 3.22 Inches
- Minimum Length:Ā 96.2 Inches
- Maximum Length:Ā 106.6 Inches
- Beam Head Assembly Type:Ā Kinedyne 80007 KwikLatch Release Head Assembly
