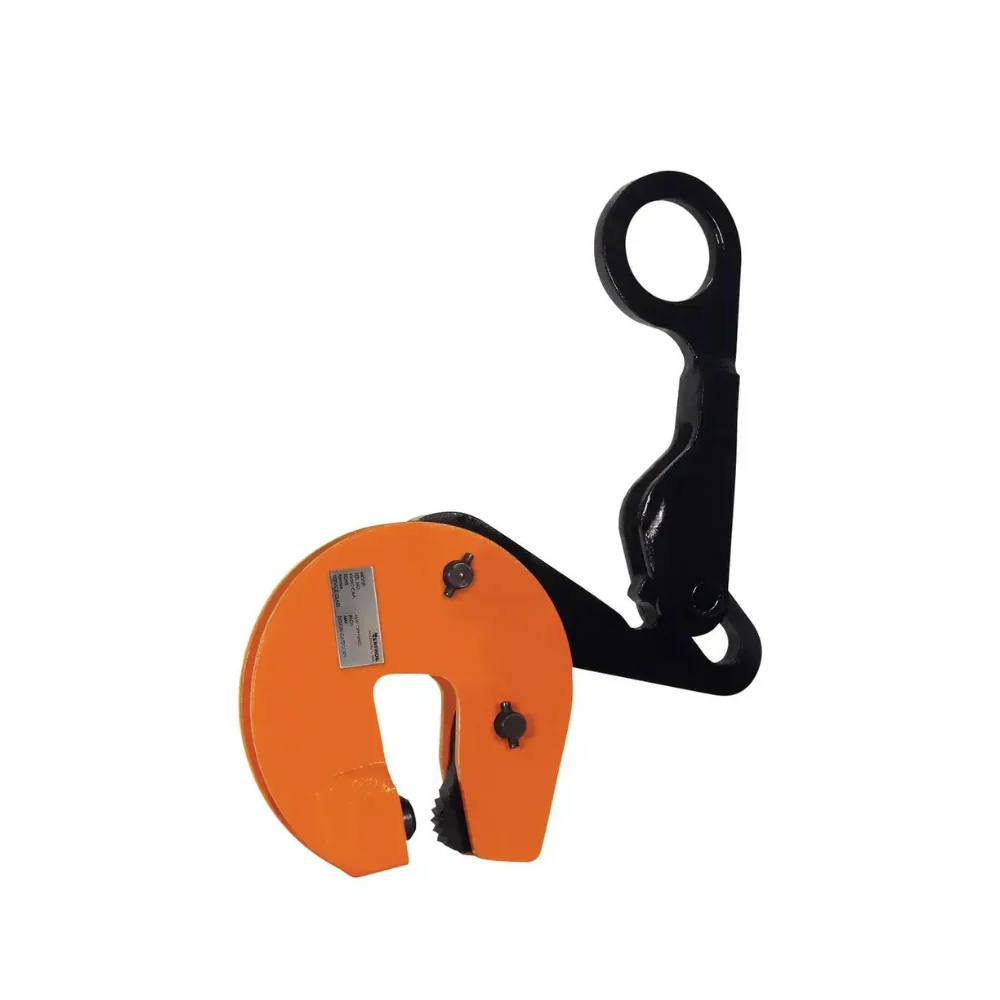

Renfroe ASTL Non-Locking Type Lifting Clamps

Very similar to the model AST, Renfroe's ASTL Non-Locking Type Lifting Clamp has been specifically developed for lifting, turning, and stacking lightweight beams and other structural shapes while a constant tension is applied to the lifting shackle.

The horizontal shackle allows the beam to be lifting with the web in a near sideways position by attaching the clamp to the load with the shackle positioned over the web, and between the flanges.

With a beam laying in a horizontal position, the clamp placed with the shackle overhanging the flange, users can lift, turn through 90-degrees, and raise the beam in a vertical position.

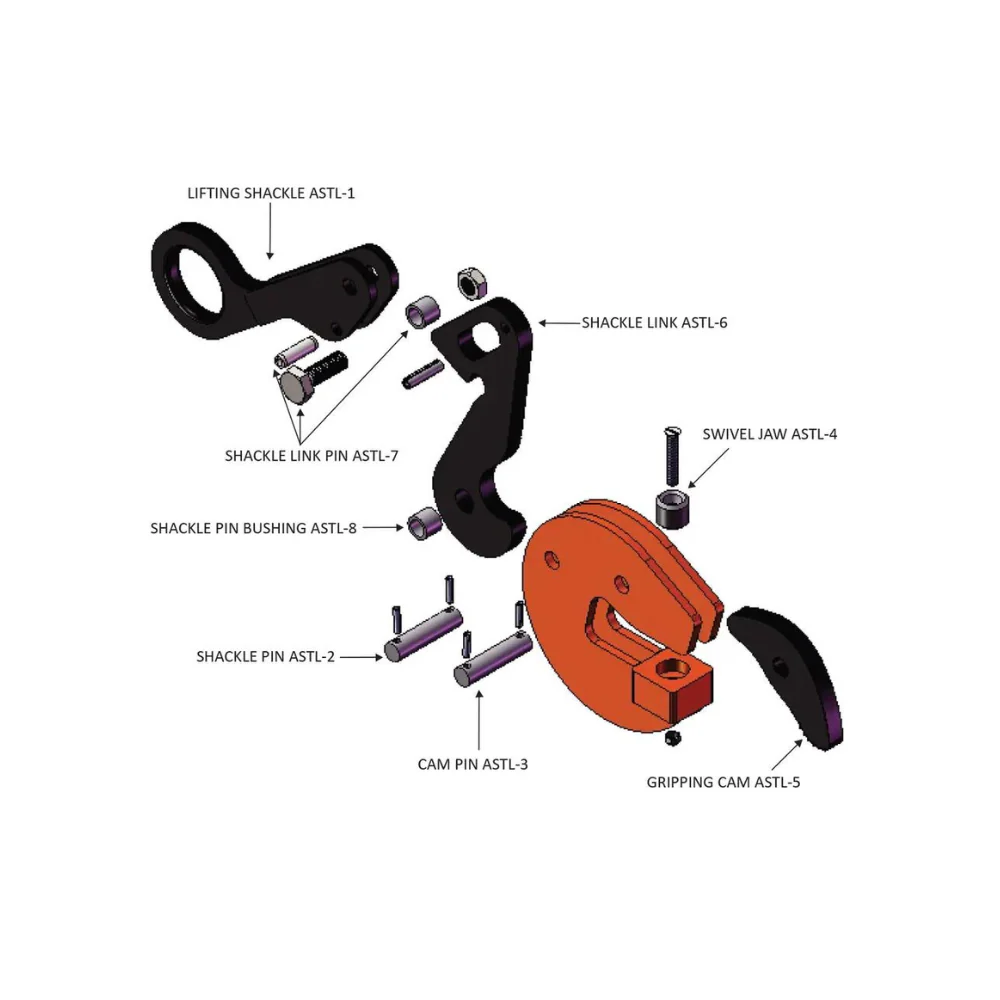

The ASTL Lifting Clamp boasts all the same exceptional feature as the AST model, but also includes a linkage which permits the tool to be removed remotely by setting the load down with the sling slack, then lifting the crane hook.

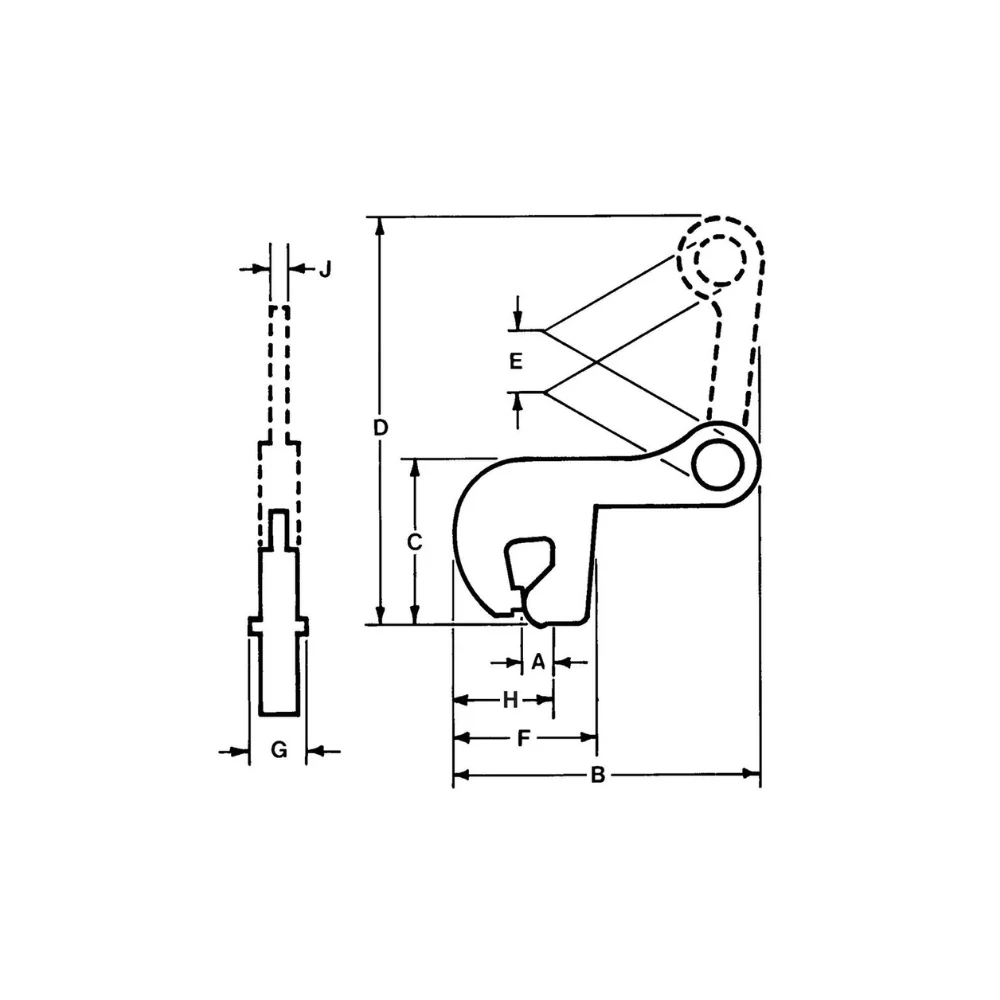

SKU	Capacity (tons)	Weight (lbs)	Clamp  Height (in.)	Clamp  Length (in.)	Clamp to Cam Length (in.)	Clamp  Width (in.)	Overall Clamp Length (in.)	Pivot Length (in.)	Max Plate Thickness (in.)	Shackle Thickness (in.)
ASTL-00.50-A	0.5	10	6.6875	6.1875	2.5	1.625	10.75	1.75	0.75	0.5
ASTL-01.50-A	1.5	24	8.5	7	3	2.5625	13	2.5	0.75	0.625
ASTL-03.00-A	3	63	12.5	11.19	4.62	3	19.25	3.38	1.5	0.75
