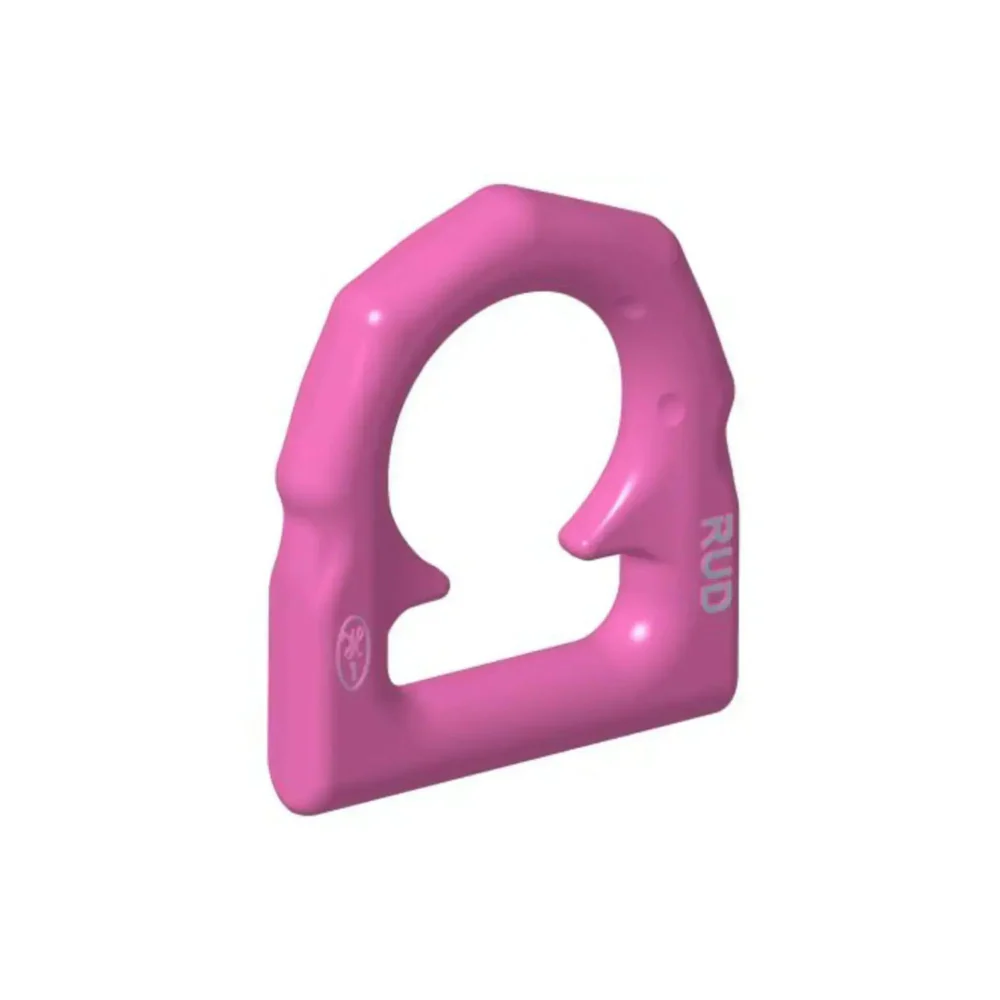

RUD VLBS Ring
Capable of holding loads of up to 5500lbs (2.5t) RUD's VLBS Load Ring has been engineered in accordance to EN 1677-1 and meets the approval requirements of the respective employer's liability insurance association.
Pink powder-coated, each unit has been 100% electromagnetic crack detected for improved durability and lifespans.
Working load limit is possible up to 90-degrees in load ring plane, while the VLBS features a functionally optimised suspension ring shape for better support when side loading and protection of the clamping spring.
|

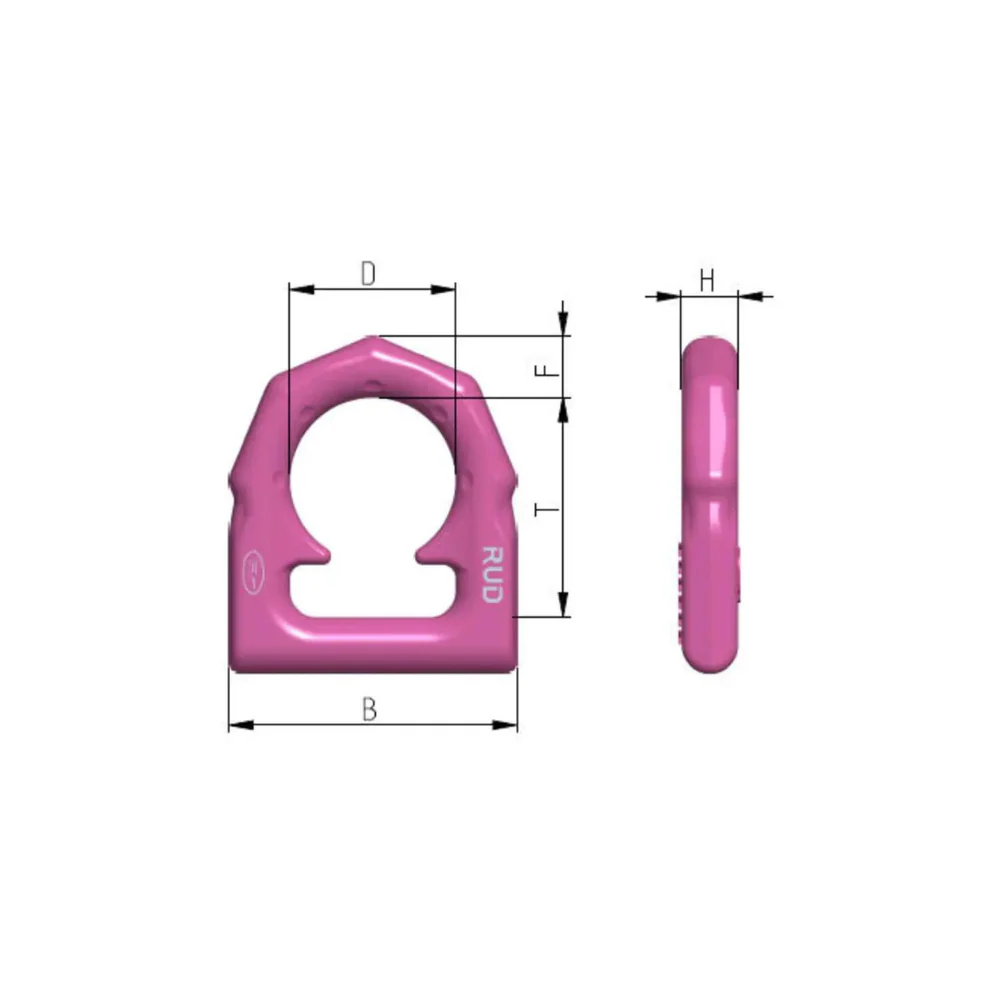

SKU |
WLL (lbs) |
B (mm) |
D (mm) |
F (mm) |
H (mm) |
Pitch T (mm) |
|
7906583 |
5500 |
77 |
45 |
16 |
16 |
58 |
Ā
