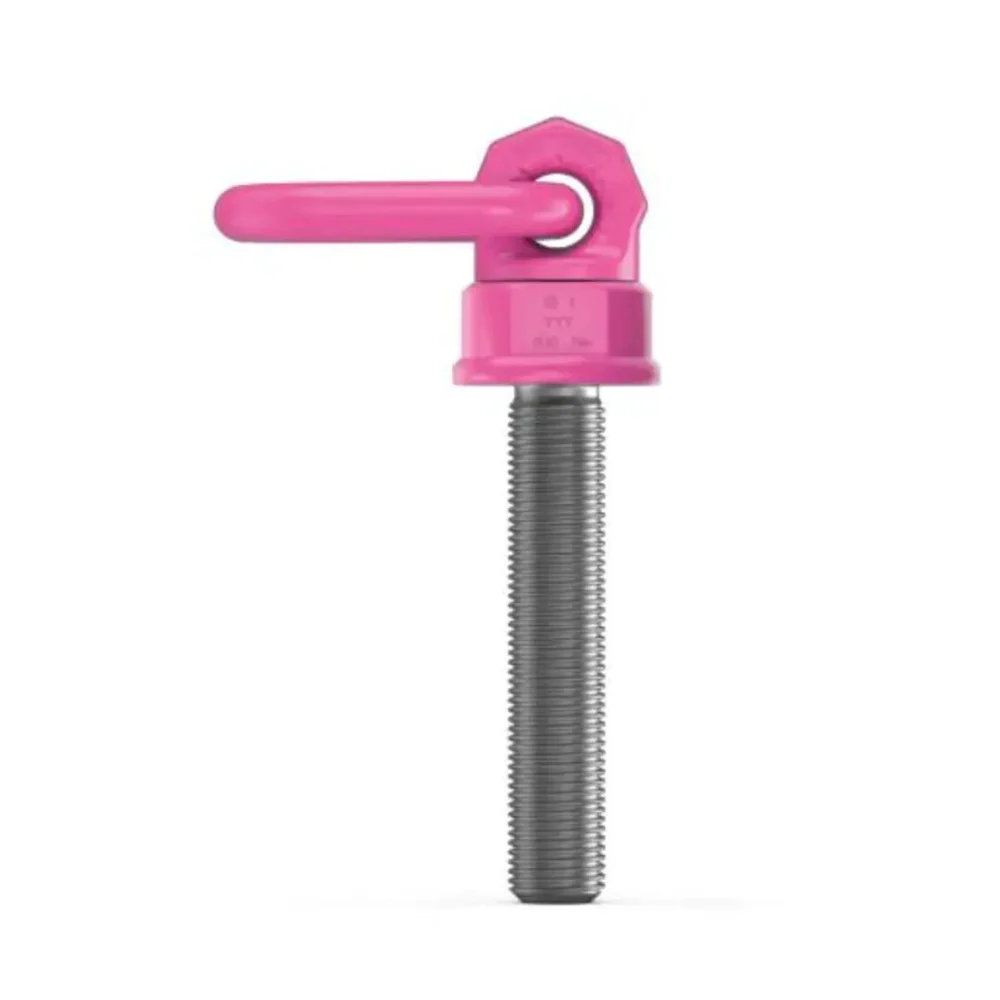

RUD VWBG Load Ring, Metric Fine Thread with Variable Length
A truly diverse lifting point, suitable for a wide range of lifting scenarios, RUD's VWBG Load Ring (Metric Fine Thread with Variable Length) is available in working load limits from 6t up to 16t - see specification tab for full details

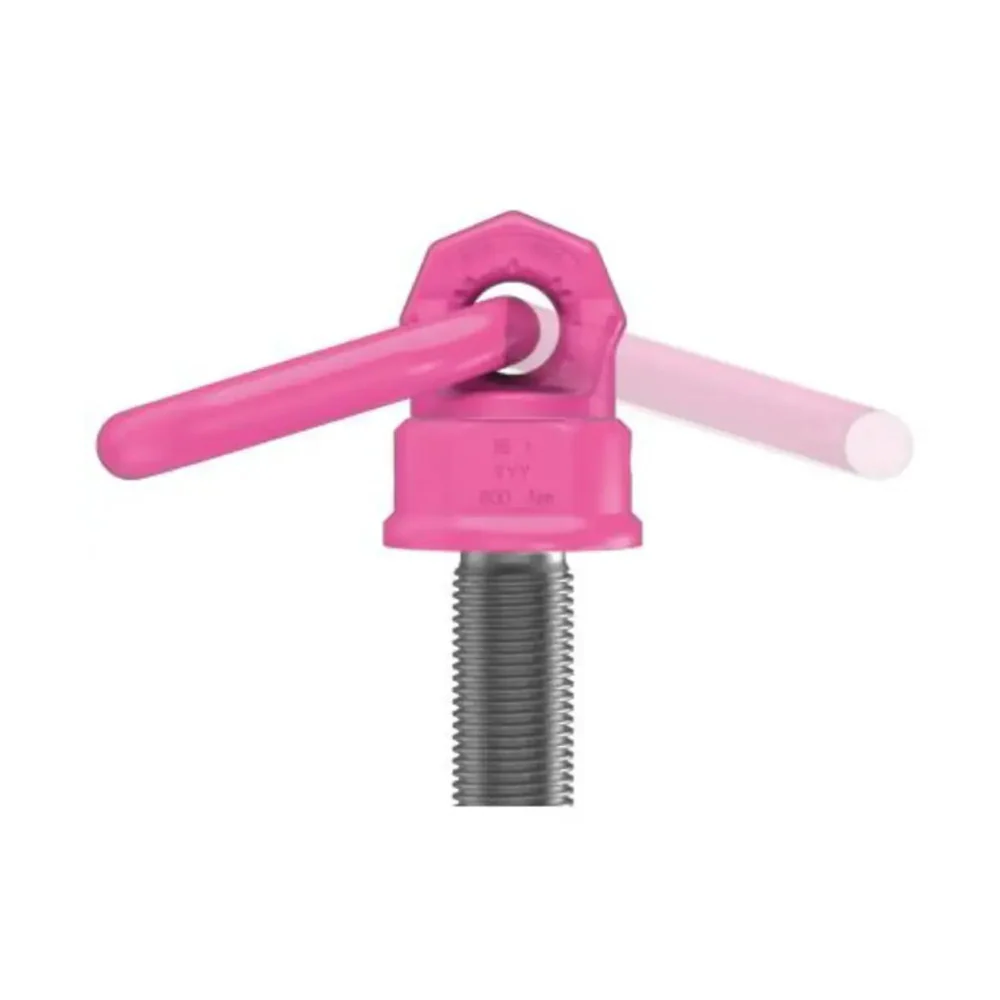

Capable of rotating 360° and pivoting 230°, these units are rotatable 90° to the bolt-on direction under rated WLL.
Designed with a large clearance between the bolt-on surface and load to prevent damage, each unit is stamped with optical markings for easy determination for withdraw from service, improving safety.
|

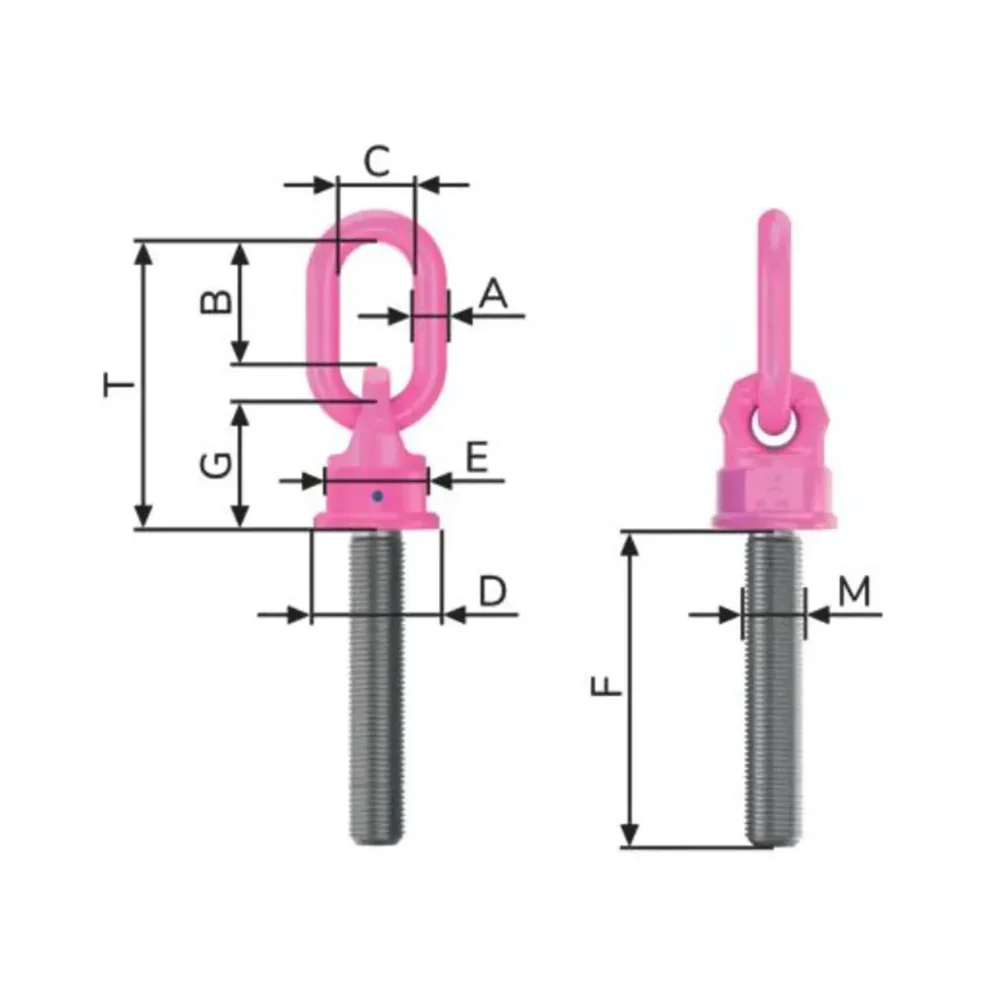

SKU |
WLL-X (t) |
WLL-Y (t) |
WLL-Z (t) |
A (mm) |
B (mm) |
C |
D (mm) |
E (mm) |
F Max (mm) |
F Min (mm) |
G (mm) |
M |
T (mm) |
|
8600150 |
6 |
7.5 |
15 |
23 |
86 |
50 |
90 |
80 |
300 |
33 |
94 |
M33x2 |
208 |
|
8600451 M36 F300MM |
8 |
10 |
15 |
22 |
86 |
50 |
90 |
80 |
300 |
36 |
94 |
M36x3 |
208 |
|
8600453 M48 |
13 |
16 |
18 |
26 |
111 |
65 |
98 |
85 |
300 |
48 |
96 |
M48x3 |
235 |
|
8600454 M56 X 4 |
16 |
22 |
28 |
32 |
119 |
70 |
120 |
95 |
300 |
56 |
120 |
M56x4 |
274 |
|
8600455 |
16 |
25 |
28 |
32 |
119 |
70 |
120 |
95 |
300 |
64 |
120 |
M64x4 |
274 |
Original: $2,200.00
-65%$2,200.00
$770.00Product Information
